| Sensor Type |
1.0-type (13.2mm x 8.8mm) Exmor RS CMOS sensor, aspect ratio 3:2 |
| Number of gross pixels |
Approx. 21.0 Megapixels |
| Number of effective pixels |
Approx. 20.1 Megapixels |
| Lens Type |
ZEISS Tessar T* Lens, 6 elements in 6 groups |
| F-number (Maximum Aperture) |
F2.0 |
| Iris Diaphragm |
7 blades |
| ND Filter |
- |
| Focal Length (f = ) |
f=7.6mm |
| Angle of View (35mm format equivalent) (Still Image)*1 |
94°(20mm) |
| Focus Range (from the front of the lens) |
Approx. 5cm (0.17 ft.) to Infinity |
| Still Image, Movie |
- |
| Still Image |
20M Approx. 2x / 10M Approx. 2.8x / 5.0M Approx. 4x |
| Movie |
4K: 1.5x
HD: Approx. 2x |
| Still Image |
20M Approx.4x / 10M Approx.5.6x / 5.0M Approx.8x |
| Movie |
Approx.4x |
| Screen Type |
7.5cm(3.0type)(4:3) / 921,600 dots / Xtra Fine / TFT LCD |
| Touch Panel |
Yes |
| Brightness control |
Manual(5 steps) / Sunny Weather |
| Adjustable angle |
Opening Angle:approx. 176 deg., Rotation Angle:approx. 270 deg. |
| Screen Type/Number of dots |
- |
| Imaging Processor BIONZ |
Yes (BIONZ X) |
| SteadyShot |
Electronic |
| Focus Mode |
Single-shot AF |
| Focus Mode |
Continuous AF |
| Focus Mode |
Manual Focus |
| Focus Area |
Wide (425 points(contrast-detection AF)) |
| Focus Area |
Zone |
| Focus Area |
Center |
| Focus Area |
Flexible Spot (S/M/L) |
| Focus Area |
Expanded Flexible Spot |
| Object Tracking |
Yes (Tracking) |
| Eye AF |
[Still images] Human (Right/Left Eye Select) / Animal;
[Movie] Human |
| Light Metering Mode |
Multi Pattern |
| Light Metering Mode |
Center Weighted |
| Light Metering Mode |
Spot |
| Light Metering Mode |
Entire Screen Avg |
| Light Metering Mode |
Highlight |
| Exposure Compensation |
+/- 3.0EV, 1/3EV step |
| Exposure Control |
Yes |
| ISO Sensitivity (Still Image)*3 |
Auto(ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100) |
| ISO Sensitivity (Movie) |
Auto:(ISO125Level-ISO6400Level), 125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 |
| White Balance Mode |
Auto |
| White Balance Mode |
Daylight |
| White Balance Mode |
Shade |
| White Balance Mode |
Cloudy |
| White Balance Mode |
Incandescent |
| White Balance Mode |
Fluor.: Warm White |
| White Balance Mode |
Fluor.: Cool White |
| White Balance Mode |
Fluor.: Day White |
| White Balance Mode |
Fluor.: Daylight |
| White Balance Mode |
Underwater Auto |
| White Balance Mode |
C.Temp./Filter |
| White Balance Mode |
Custom |
| WB micro adjustment |
Yes |
| Electronic Shutter |
Program Auto(1/4" - 1/32000) / Manual(1/4" - 1/32000) / Aperture Priority(1/4" - 1/32000) / Shutter Priority(1/4" - 1/32000) |
| Aperture |
Program Auto(F2/F8) / Manual(F2/F8) / Shutter Priority(F2/F8) / Aperture Priority(F2/F8) |
| Image Control |
Contrast |
| Image Control |
Saturation |
| Image Control |
Sharpness |
| Image Control |
Creative look |
| Image Control |
Color Space |
| Image Control |
Quality(JPEG ( Extra fine, Fine, Standard) |
| Noise reduction |
high ISO NR:Normal/Low/Off |
| Dynamic Range Functions |
Off, Dynamic Range Optimizer (Auto/Level 1-5) |
| Shooting Mode |
Auto(Intelligent Auto) |
| Shooting Mode |
Program Auto |
| Shooting Mode |
Aperture Priority |
| Shooting Mode |
Shutter Speed Priority |
| Shooting Mode |
Manual Exposure |
| Shooting Mode |
Movie Mode(Program Auto, Aperture Priority, Shutter Speed Priority, Manual Exposure, Movie Auto(Intelligent Auto)) |
| Shooting Mode |
S&Q Mode(Program Auto, Aperture Priority, Shutter Speed Priority,Manual Exposure, S&Q Auto(Intelligent Auto)) |
| Continuous Shooting Speed (maximum) (with max. recording pixels)*4 *5 *6 |
Speed Priority Continuous Shooting: approx. 16 fps, Continuous Shooting: approx. 3.5 fps *7 |
| Self-Timer |
10sec. / 5sec. / 2sec. /self timer(movie) |
| Drive modes |
Single |
| Drive modes |
Continuous shooting |
| Drive modes |
Self-timer |
| Interval Rec |
Yes (1-60 sec. interval, 1-9999 shots, AE lock/AE tracking(High/Mid/Low)) *8 |
| Panorama |
- |
| Photo Creativity |
- |
| Picture Profile |
off/PP1-PP10(Black Level, Gamma(Movie, Still, Cine1-2, ITU709, ITU709 [800%], S-Log2, S-Log3, HLG, HLG1, HLG2, HLG3), Black Gamma, Knee, Color Mode, Saturation, Color Phase, Color Depth, Detail, Copy, Reset) |
| Compatible Recording Media*9 |
[XAVC S(100Mbps)] SDXC/SDHC Memory Card (UHS-I U3 or higher); [XAVC S(60Mbps/50Mbps)] SDXC/SDHC Memory Card (Class 10 or higher); [Still image] Memory Stick Duo, Memory Stick PRO Duo, Memory Stick PRO-HG Duo, Memory Stick Micro*10 , Memory Stick Micro(Mark2)*10 , SDXC/SDHC/SD Memory Card (Class 4 or higher), micro SDXC/SDHC/SD Memory Card (Class 4 or higher)*10 |
| Recording Format(Still Image) |
JPEG(DCF Ver.2.0,Exif Ver.2.32,MPF Baseline compliant) |
| Recording Format(Movie) |
XAVC S |
| Recording Format(Movie Audio) |
XAVC S:LPCM 2ch |
| Color Space (Still) |
sRGB, Adobe RGB |
| DCF/DPOF |
DCF/EXIF/MPF |
| Still Image Number of recorded pixels (Image Size) |
3:2mode:20M(5,472×3,648) / 10M(3,888×2,592) / 5M(2,736×1,824),4:3mode:18M(4,864×3,648) / 10M(3,648×2,736) / 5M(2,592×1,944) /16:9mode:17M(5,472×3,080) / 7.5M(3,648×2,056) / 4.2M(2,720×1,528),1:1mode:13M(3,648×3,648) / 6.5M(2,544×2,544) / 3.7M(1,920×1,920) |
| Movie Recording Mode |
NTSC/PAL Selector: [PAL] mode XAVC S 4K: 25p 100M(3,840x2,160/25p) / 25p 60M(3,840x2,160/25p), XAVC S HD:50p 50M(1,920x1,080/50p) / 50p 25M(1,920x1,080/50p) / 25p 50M(1,920x1,080/25p) / 25p 16M(1,920x1,080/25p) / 100p 100M(1,920x1,080/100p) / 100p 60M(1,920x1,080/100p),
NTSC/PAL Selector: [NTSC] XAVC S 4K: 30p 100M(3,840x2,160/30p) / 30p 60M(3,840x2,160/30p) / 24p 100M(3,840x2,160/24p) / 24p 60M(3,840x2,160/24p), XAVC S HD:60p 50M(1,920x1,080/60p) / 60p 25M(1,920x1,080/60p) / 30p 50M(1,920x1,080/30p) / 30p 16M(1,920x1,080/30p) / 24p 50M(1,920x1,080/24p) / 120p 100M(1,920x1,080/120p) / 120p 60M(1,920x1,080/120p) |
| Image frame rate |
NTSC mode: 1fps, 2fps, 4fps, 8fps, 15fps, 30fps, 60fps, 120fps / PAL mode: 1fps, 2fps, 3fps, 6fps, 12fps, 25fps, 50fps, 100fps |
| Exif Print |
Yes |
| PRINT Image Matching (PIM3) |
Yes |
| Input and Output Terminal |
USB Terminal Type-C (USB2.0), Micro HDMI, Microphone jack (3.5mm Stereo mini jack) |
| NFC |
- |
| Wi-Fi |
Yes(IEEE802.11b/g/n(2.4GHz band)) |
| Eye-Fi |
- |
| Bluetooth |
Yes (Bluetooth Standard Ver. 4.1 (2.4GHz band)) |
| Power Source |
DC3.6V(supplied battery) |
| Battery System |
Rechargeable battery pack NP-BX1 |
| Power Consumption (Camera mode) |
Approx. 1.5W with LCD monitor (CIPA standard) |
| USB Charge/USB Power Supply |
Yes (Shooting, Playback) |
| Still Images*11 |
Monitor:Approx. 360 / Approx. 180min., Monitor (When Auto Monitor off is set to 2sec):Approx. 540 / Approx. 270min., |
| Movies (actual shooting)*12 *13 |
Monitor:Approx. 60min., *14 |
| Movies (continuous shooting)*12 |
Monitor:Approx. 90min., *14 |
| InCamera Guide |
Yes |
| PlayMemories Camera Apps |
- |
| Other Shooting Functions |
Face Detection |
| Other Shooting Functions |
Face Registration |
| Other Shooting Functions |
Grid Line |
| Other Shooting Functions |
Digital Level Gauge (pitch and roll) |
| Other Shooting Functions |
Peaking (Display: Off/On) (Level: High/Mid/Low) (Color: Red/Yellow/Blue/White) |
| Other Shooting Functions |
Zebra |
| Other Shooting Functions |
Marker Display |
| Other Shooting Functions |
Audio Rec Level |
| Other Shooting Functions |
Audio Level Display |
| Other Shooting Functions |
Step Zoom |
| Other Shooting Functions |
PC Remote Control |
| Other Shooting Functions |
Gamma Disp. Assist |
| Other Shooting Functions |
Set File Name |
| Other Shooting Functions |
Touch Shutter/Touch Focus/Touch Tracking |
| Other Shooting Functions |
My Menu |
| Other Shooting Functions |
Soft Skin Effect |
| Other Shooting Functions |
Product Showcase Set |
| Other Shooting Functions |
Background Defocus |
| Other Shooting Functions |
Shot Mark (Movie) |
| Other Playback Function |
BRAVIA Sync(Control for HDMI) |
| Other Playback Function |
9/25-frame index view |
| Other Playback Function |
Auto Orientation |
| Other Playback Function |
Slide Show |
| Other Playback Function |
Forward/Rewind (Movie) |
| Other Playback Function |
Delete |
| Other Playback Function |
Protect |
| Other Playback Function |
Photo Capture |
| Other Playback Function |
Rating |
| TRILUMINOS Color*15 |
Yes |
| 4K image output |
Yes |
| Operating Speed*16 |
Start-up Time (Approx. 1.2 sec.) / Shooting Time Lag (Approx. 0.15 sec.) / Shooting Interval (Approx. 0.44 sec.) |
| Digital Level Gauge |
Yes (Pitch and roll) |
| DIMENSIONS (W x H x D) (Approx.) |
105.5x60.0x46.4 mm
(4 1/4in. × 2 3/8 in. × 1 7/8 in.) |
| Weight (CIPA compliant) |
Approx. 256g (9.1oz.)(Battery and Memory Card are included) / Approx. 229g (8.1oz.)(Body Only) |
| Supplied Accessory |
Rechargeable Battery Pack (NP-BX1) |
| Supplied Accessory |
Type-C USB cable(USB2.0) |
| Supplied Accessory |
Wind Screen |
| Supplied Accessory |
Wind Screen Adaptor |
| Supplied Accessory |
Instruction Manual |
| Filter diameter |
φ40.5 |
| Linear Focus |
Yes |
| Scan System |
Progressive scan |
| Color Filter |
R,G,B primary color mosaic filters |
| Active Mode |
Electronic |
| Focusing Type |
Contrast-detection AF |
| Metering Sensitivity |
EV 0 to 20 (at ISO100 equivalent) |
| Auto Controll Range |
Auto(ISO125-6400),125/160/200/250/320/400/500/640/800/1000/1250/1600/2000/2500/3200/4000/5000/6400/8000/10000/12800 (Extendable to ISO80/100) |
| Mode |
Face Priority inAF(On/Off), Face Priority in Multi Metering(On/Off), Regist. Faces Priority(On/Off) |
| Face Registration |
New Registration / Order Exchanging / Delete / Delete All |
| Maximum number of detectable faces |
8 faces |
| Proxy Recording |
Yes(1280 x 720(Approx.9Mbps)) |
| Program shift AE |
Yes |
| AE locked when focus is loked |
Yes |
| Bracketing |
- |
| Flash Compensation |
- |
| Flash Sync. Speed |
- |
| Recycling Time |
- |
| Control |
- |
| External Flash |
- |
| Flash Type |
- |
| Red Eye Reduction |
- |
| Auto Orientation |
On only |
| MF Assist magnification |
1.6x,4.0x |
| Recording Format |
Still Images: JPEG ( DCF, Exif, MPF Baseline ) compliant |
| Memory Stick Duo |
32GB |
| Memory Stick Micro |
16GB |
| SD Memory Card |
128GB |
| microSD Memory Card |
64GB |

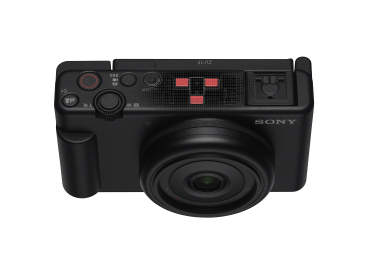

| Built-in Microphone |
Stereo |
| Speaker |
mono |
| Volume Setting |
16 steps |
| Wind noise reduction |
Off / On |
| Cue, Review (Movie) |
Yes |
| Slow Playback (Movie) |
Yes |
| Index |
9 / 25 images |
| Display as Group |
Yes |
| Video Out |
4K (HDMI) |
| Movie |
Yes |
| Image |
All |
| Interval |
1 / 3 / 5 / 10 / 30 sec. |
| Repeat |
On / Off |
| Zoom Magnification of Playback Mode |
Depends on Image Size |
| Automatic Image Rotation |
Yes |
| Auto Orientation(Auto pict rotation in response to camera position in playback) |
Yes |
| Rotate |
Yes |
| Delete |
Single / Select / All but This Image / Folder / Date / Group |
| Protect |
Select / Folder / Date / Group |
| from 16:9Movie to Still Image Size |
XAVC S 4K : 8.3M(3840×2160)
XAVC S HD : 2.1M(1920×1080) |
| PlayMemories Home |
- |
| Histogram Indicator |
Yes(On/Off) |
| Beep |
Yes(On/Shutter/Off) |
| One-touch remote |
- |
| One-touch sharing |
- |
| Ctrl with Smartphone(Single) |
Yes |
| Send to Smartphone |
Yes (Select on This Device / Select on Smartphone) |
| Location information Link from smartphone |
Yes |
| Multi Interface Shoe |
- |
| Print Order Mark (DPOF) |
- |
| Power Saving |
1min / 2min / 5min / 30min |
| Clock Function,Setting |
Yes |
| Area Setting |
Yes |
| Demo Mode |
- |
| REC Lamp |
Yes |
| NTSC/PAL switchover |
Yes |
| 2D (Auto)*17 |
Yes |
| HDMI Info. Display |
Off/On |
| Video Out Mode |
NTSC / PAL |
| Mass Storage |
Yes |
| MTP |
Yes |
| LUN Settings (Multi/Single) |
Multi / Single |
| Tripod Receptacle |
Yes |
| Maximum Voltage |
4.2V |
| Nominal Voltage |
3.6V |
| Capacity for Shooting |
4.5Wh(1240mAh) |
| Power Requirements |
- |
| Output voltage |
- |
| Dimensions (WxHxD) |
- |
| Mass |
- |
| Body Material |
Aluminium and plastic |
| Operating Temperature |
0 degrees C. - +40 degrees C. / 32 degrees F. - 104 degrees F. |
| Storage Temperature |
-20 degrees C. - +55 degrees C. / -4 degrees F. - +131 degrees F. |
| Shutter Release Time Lag |
Approx. 0.007 sec. |
| Continuous Shooting (Maximum number of recoded pixels)*18 *4 |
Approx.0.06 sec *7 |
