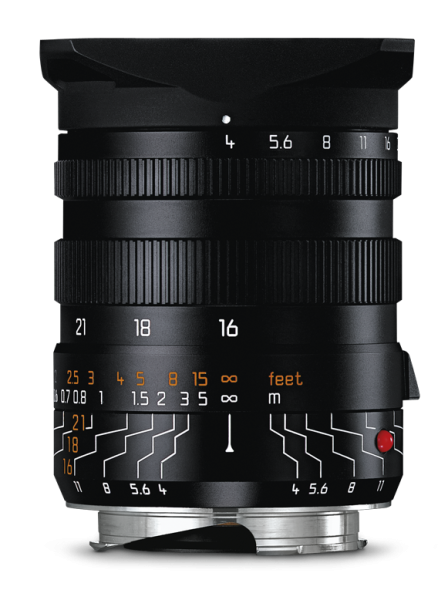

LEICA SET TRI-ELMAR-M ASPH noir
Trois focales, haute performance, compacité: Deux éléments asphériques dans la formule optique de cet objectif garantissent des résultats parfaits. La mise au point interne améliore significativement la qualité d’image aux courtes distances de mise au point, en particulier grâce à l’intégration d’une lentille flottante. Avec la possibilité de choisir entre trois focales à partir d’un seul objectif, le Tri-Elmar-M offre aux photographes une flexibilité maximale.
| Lens |
Leica TRI-ELMAR-M ASPH |
| Angle of view (diagonal/horizontal/vertical) | |
| for 35 mm (24×36 mm) |
at 16 mm: 107°, 97°, 74° at 18 mm: 100°, 90°, 67° at 21 mm: 92°, 81°, 60° |
| for digital (18×27 mm) |
at 16 mm: 90°, 80°, 59° at 18 mm: 84°, 74°, 53° at 21 mm: 75°, 65°, 46°, corresponds approx. to a focal length of 21/24/28 mm with 35 mm-format |
| Optical design | |
| Number of elements/groups: | 10/7 |
| Distance setting | |
| Focusing range: | 0.5 m to Infinity, range from 0.5 to 0.7 m separated by index |
| Scales | Combined meter/feet graduation with uniform grey figures below 0.7 m |
| Smallest object field for 35 mm: |
at 16 mm: 915 x 1373 mm, approx. 1:38 at 18 mm: 833 x 1250 mm, approx. 1:35 at 21 mm: 725 x 1087 mm, approx. 1:30 |
| Smallest object field for digital: |
at 16 mm: 688 x 1032 mm, approx. 1:38 at 18 mm: 626 x 939 mm, approx. 1:35 at 21 mm: 545 x 817 mm, approx. 1:30 |
| Highest reproduction ratio at 0,7 m |
at 16 mm: 1:38 at 18 mm: 1:35 at 21 mm: 1:30 |
| Aperture | |
| Setting/Function: | Preset, with click-stops, half values available |
| Lowest value: | 22 |
| Bayonet |
Leica M quick-change bayonet with 6 bit lens identification bar code for digital M models |
| Filter (type) | Male thread, non-rotating and with stop for filter holder or lens hood |
| Lens hood |
screw-on type lens hood (included in delivery), filter holder for E67 size filters optionally available |
| Dimensions and weight | |
| Length: | approx. 66/72 mm (with/without lens hood) |
| Largest diameter: | approx. 54 mm (53 x 58 mm with lens hood) |
| Weight: | approx. 335 g |
